Energetic Lighting Dimmable 100 Watt Slim LED Area Fixture With Yoke/Trunnion Mount, Type III, 5000K, 200-400 Watt Equivalent

SKU: 75200-TR-A | Ordering Code: E4SB100D3C-850-TR

Sorry, this product is not available to purchase.

Options

Brightness (Lumens)
21000

Product Highlights

  • Energy efficient replacement for a 250-400 watt HID bulb
  • Estimated life of 45.7 years based on 3 hours use per day
Description

Lighting Facts Per Bulb

Brightness 14000 lumens
Estimated Yearly Energy Cost $12.05
Based on 3 hrs/day, 11¢/kWh
Cost depends on rates and use
Life
Based on 3 hrs/day45.7 years
Light Appearance
WarmCool
5000 K
Energy Used100 watts
  • On
    sale

Energetic 100 watt 5000K dimmable slim LED Area Fixture with yoke/trunnion mount is equivalent to a 200-400 watt metal halide fixture, depending on mounting height.

Ideal for parking lots, streets and walkways.

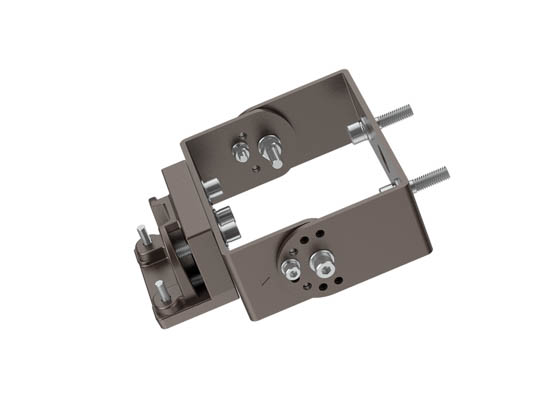

  • Includes a yoke/trunnion mount in a separate box
  • Optional photocell available. Call a Bulbs.com Lighting Specialist for details at 888.455.2800
  • Housing is completely sealed against moisture and environmental contaminants
  • Ground facing access door
  • 10kV surge protection
  • Type III light distribution - Ideal for poles on the side of an area, allowing the light to project outward
  • Universal 120-277V
  • 0-10V dimming - Compatible with Lutron NTSTV-DV-WH and DVSTV-WH, and Legrand/Wattstopper TSD4FBL3PTC and RH4FBL3PTC dimmers
  • Suitable for mounting heights ranging from 26' to 40'



Product Documents

Full Specs

Brand

Energetic Lighting

Model Number

E4SB100D3C-850-TR
Energy Used
A rating, expressed in watts, to indicate the rate at which a lamp consumes energy. Also known as wattage value.
100 Watts
HID Equivalent
The wattage value of a High Intensity Discharge (HID) bulb of similar brightness.
250-400

Line Voltage

120-277
CRI
Color Rendering Index is an international system used to rate a lamp's ability to render object colors. The higher the CRI (based upon a 0-100 scale) the richer and more accurately colors generally appear. CRI differences among lamps are not usually visible to the eye unless the difference is more than 3-5 points.
80
Color Temperature (Kelvin)
An expression of the hue of the light emitted, measured in degrees Kelvin. Usually expressed by a four digit number followed by (k), such as 2700k. Higher temperatures indicate whiter, "cooler" colors, while lower temperatures indicate yellower, "warmer" colors. Some common Kelvin temperature benchmarks are 2700k (warm white), 3500k (neutral white), 4100k (cool white), 5000k (bright white), and 6500k (daylight).
5000
Brightness (Lumens)
A rating of the initial light output of a bulb, rated after 100 hrs of operation. Lumens are a measure of how much light falls on one square foot of area, one foot away from the light source.
14000
Average Rated Life (hr)
A measurement of the average length of time, between first use and the point when 50% of the lamps tested have stopped functioning, , using an operating cycle of 3 hours on, 20 minutes off.
50000
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 113
Bulb Type Supplied
Type of bulb supplied with the fixture
LED
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
12.4
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
2.4
Depth (in)
For fixtures and ballasts, depth is the measurement of total distance from front to back of the product in inches.
11.4
Finish
The decorative finish of the item.
Bronze

Housing

Aluminum die cast

Mounting

Yoke or Trunnion

Manufacturer Warranty

10 year limited
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
Dimmable
Indicates whether a product can be dimmed in conjunction with a suitable dimmer control.
Yes
