Level 2 Commercial Electric Vehicle Chargers

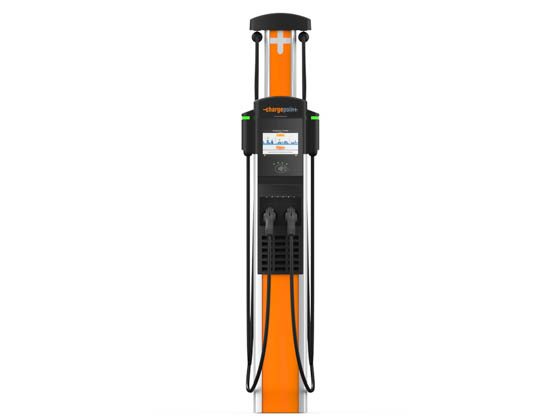

ChargePoint CP6021B 80amp Bundle 1-Year Network, Activation, Mounting Kit & 6ft Cable Management Dual Port Pedestal Mount

SKU: CP6021B-80A-L5.5 | Ordering Code: CP6021B-80A-L5.5

$12,099.00each
Charger
Add to Cart
Save to BulbTrack ?

Quickly and easily order the products you have purchased in the past or plan to order in the future by simply adding them to your My BulbTrack page.

Once a product has been added to My BulbTrack, ordering it is as easy as entering the quantity or clicking on the product image. You can even add notes to each product to record where it is used in your business or home.

Ships from SupplierUsually ships in 3-7 business days.

This item qualifies for free ground shipping *

Options

Charging Current (Amps)
30 50 80
Power Delivery (kW)
7.2 12 19.2
Mounting
Pedestal Wall
Charging Plug
Dual Port Single Port
Description
  • ENERGY
    STAR

ChargePoint CP6021B 80amp Bundle 1-Year Network, Activation, Mounting Kit & 6ft Cable Management Dual Port Pedestal Mount

  • Dual port unit 80A for each port
  • 8" Touch Display Screen
  • Contactless credit card and RFID reader
  • Cellular or WiFi connection
  • Pedestal mount
  • 6ft cable management
  • 18ft cord
  • 208v or 240v
  • 19.2kW
  • SAE J1772
  • Integral modem



The ChargePoint CP6000 series with 3G LTE cellular connection to communicate with the Cloud is perfect for commercial use. This allows you to configure the stations to operate as you would like. You can collect payments, monitor usage, check availability, and be visible to the public on multiple EV charging mobile APPs.



Included with this bundle

  • Network (CPCLD-COMMERCIAL-1): 1-Year Commercial Cloud Plan (2x)
  • Activation (CPSUPPORT-ACTIVE): one-time activation
  • Bollard Concrete Mounting Kit (CP6000-CMT-NA)



Recommended options:

  • Assured Warranty (CP6000-ASSURE-1): 1-year warranty that includes parts and labor, remote technical support, on-site repairs when needed, unlimited configuration changes, and reporting.





Product Documents

Full Specs

Brand

ChargePoint

Product Line

CP6000
Volts
A measure of "electrical pressure" between two points. The voltage specification of an incandescent lamp is the electrical "pressure" required to drive it at its designed point. The "voltage" of a ballast (e.g. 120 V) refers to the line voltage coming from the power source and is connected to the ballast.
208/240
Operating Temperature (°F)
The ambient temperature in which the product can safely operate.
-40 to 122
Width (in)
For fixtures and ballasts, width is the measurement of the total horizontal distance from left to right of the product in inches.
11.2
Height (in)
For ballasts and fixtures, height is the measurement of total vertical distance from the top of the product to the bottom expressed in inches.
71.5
Depth (in)
For fixtures and ballasts, depth is the measurement of total distance from front to back of the product in inches.
18.75

Mounting

Pedestal
Electrical Connection
The manner in which a fixture connects to its power supply, either hard-wired or plug-in.
Hardwired
Network Connectivity
Methods that product can connect to for remote control.
Cellular/WiFi
Charging Current (Amps)
The amount of current to charge a battery.
80
Power Delivery (kW)
The amount of power in kilowatts that a charger can deliver to the battery per hour.
19.2
Wet Location
Suitable for exterior or interior location in which uncontrolled liquid may drip, splash or flow on or against electrical equipment.
Yes
ENERGY STAR Certified
ENERGY STAR is a program created jointly by the U.S, Environmental Protection Agency and the U.S. Department of Energy to help people save money and protect the environment by using energy-efficient electronics and appliances. ENERGY STAR-certified devices use less energy without compromising functionality.
Yes
ENERGY STAR Number
Number identifying the product in ENERGY STAR certification listing.
2304183
Charging Plug
EV Charging plugs can be single or dual port.
Dual Port
